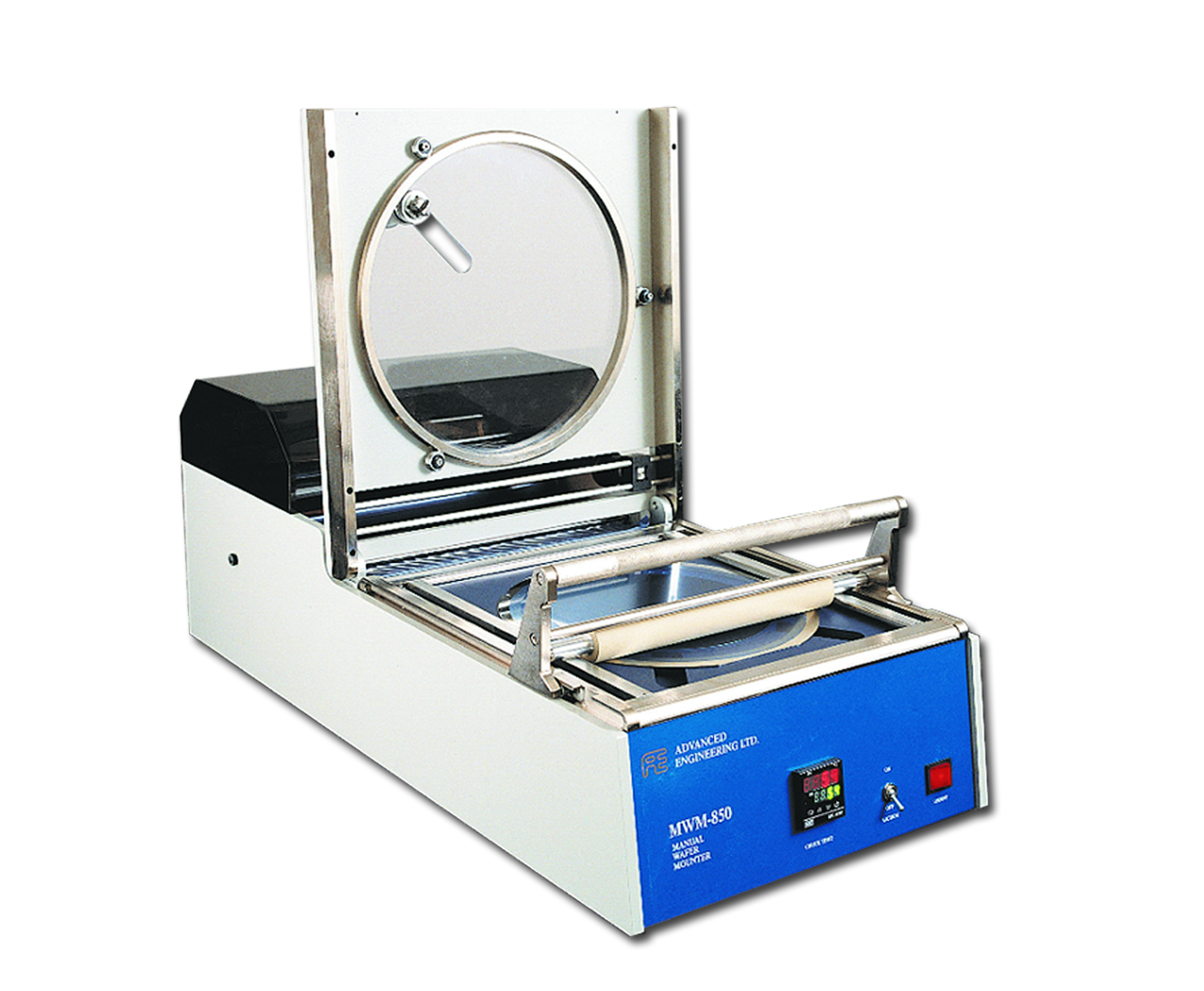

MWM-850 - Up to 8", simple-to-use, adjustable temperature, roller mechanism, UV tape capable.
MWM-850.pdf
MWM - 850
Chucks
- Available for All Standard 8” & 12"
Wafer/Film Frame Sizes. Custom chucks and
Non-Contact chucks for all applications.
Wafer/Film Frame Sizes. Custom chucks and
Non-Contact chucks for all applications.
Desktop
Design - minimizes space requirements.
Built-in Vacuum Generator.- no vacuum line required.
Built-in Vacuum Generator.- no vacuum line required.
Closed-loop, Digital Platen
Temperature Control.
Safe, Simple, Accurate
Operation.
Wafer alignment Options -
available (reduces dicing
system alignment time).
system alignment time).
* Non-contact mounting option available.
* CE Approved.
FEATURES
* UV tape backing separator.
* ESD eliminator.
* Non-contact mounting chuck (custom-manufactured
per application requirements).
per application requirements).
* Custom chucks to enable the
mounting of
non-standard applications on existing MWM-850
systems. One system for many applications.
non-standard applications on existing MWM-850
systems. One system for many applications.
OPTIONS
Dimensions: (H x W
x D) 12” x 15.5” x 31.5”
(30.5 x 39.5 x 80 cm).
(30.5 x 39.5 x 80 cm).
Weight:
70 lbs (32 kg).
Line Voltage: 110 - 120 Vac, 50/60 Hz, Single Phase, or
220 - 240 Vac, 50/60 Hz, Single Phase. Air: 5 bar, c.d.a.
220 - 240 Vac, 50/60 Hz, Single Phase. Air: 5 bar, c.d.a.
SPECIFICATIONS
